Description: pH Meter Water Test Bench Top Model: HI2211
pH Range -2.00 to 16.00 pH
pH Resolution 0.01 pH
pH Accuracy ±0.01 pH
pH Calibration automatic, one or two-point with five memorized buffer values (pH 4.01, 6.86, 7.01, 9.18, 10.01)
pH Temperature Compensation automatic or manual from -9.9 to 120.0°C
pH Input impedence 10¹² Ohms
mV Range ±399.9 mV ; ±2000 mV
mV Resolution 0.1 mV; 1 mV
mV Accuracy ±0.2 mV (±399.9 mV); ±1 mV (±2000 mV)
Temperature Range -9.9 to 120.0°C (14.2 to 248.0°F)
Temperature Resolution 0.1 °C
Temperature Accuracy ±0.5 °C (0.0 – 100.0 °C); ±1 °C (outside)
Input Channels HI1131B glass body pH electrode with BNC connector
Temperature Probe HI7662 stainless steel temperature probe
Power Supply 12 VDC adapter (included)
Environment 0 to 50°C (32 to 122°F; 273 to 323 K), RH max 95% non-condensing
Dimensions 240 x 182 x 74mm (9.4 x 7.1 x 2.9”)
Ordering Information HI2211 is supplied with HI1131B pH electrode, HI7662 temperature probe,
HI76404N electrode holder, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet,
HI7082 electrolyte solution, HI700601 cleaning solution sachet, 12 VDC adapter, and instructions.

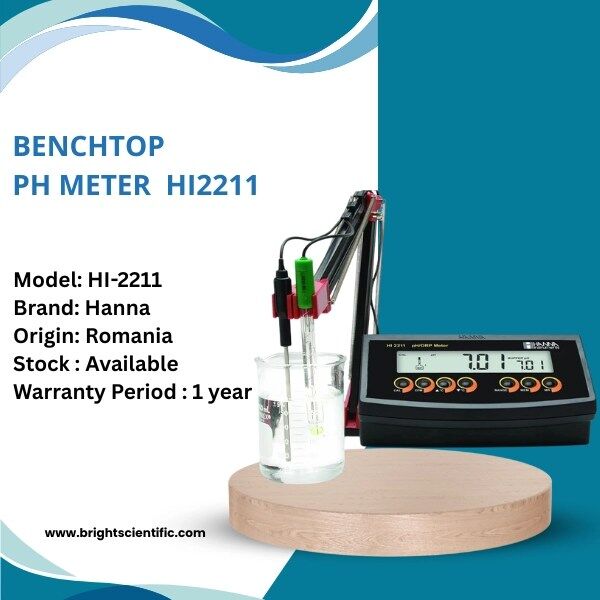

The HI2211 is a basic affordable Benchtop pH meter HI2211pH/mV benchtop meter. Operation is simplified to calibration, mode selection (pH or mV),
and a last stored reading feature. The HI2211 has a selection to choose between pH and mV modes. The mV mode is used with
an optional ORP electrode that is used to check the oxidation or reduction potentials of a solution. Hanna offers a variety
of ORP electrodes from glass to PEI plastic body styles. The mV mode of the HI2211 is also useful in checking the offset and slope of the
pH electrode. Understanding the offset and slope characteristic is helpful in knowing if the probe is functioning correctly.
The HI2211 has a separate inputs for a BNC pH electrode and thermistor temperature probe. The BNC connector is a universal connector that is
commonly available and allows the user to select from a wide variety of pH and ORP electrodes for their particular application. The separate
temperature probe provides for a high 0.5°C accuracy measurement for precise temperature compensation.
