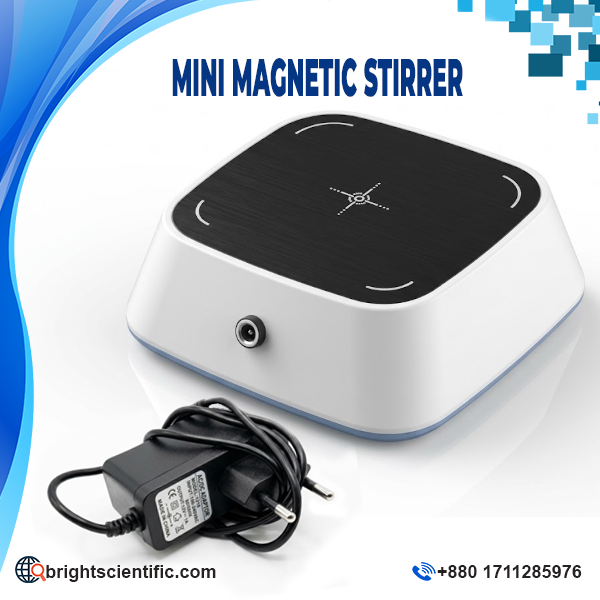

C1 Mini Magnetic Stirrer – Adjustable Speed, 3L Capacity

Product Description

The C1 Mini Magnetic Stirrer is a compact, efficient, and cost-effective laboratory instrument designed for smooth and uniform liquid mixing. With adjustable speed control and a maximum stirring capacity of 3000 mL, it is suitable for routine laboratory experiments, educational demonstrations, sample preparation, and research applications. Its space-saving design makes it an excellent choice for laboratories, colleges, universities, quality control facilities, and research and development workstations.

Key Features of C1 Mini Magnetic Stirrer

• Adjustable Speed Control: Provides a variable speed range of approximately 300–3000 RPM, allowing users to select a suitable stirring speed for different mixing requirements.
• Compact and Portable Design: Its lightweight construction saves valuable laboratory bench space and makes it easy to move between workstations.
• Uniform Magnetic Stirring: Uses a magnetic stir bar to mix liquids without direct mechanical contact between the motor and the sample.
• Low-Noise Operation: Designed for quiet operation, making it suitable for classrooms, shared laboratories, and routine analytical work.
• Simple Operation: The convenient rotary control allows users to start, stop, and adjust stirring speed easily.
• Durable Construction: The engineered plastic housing supports everyday laboratory use when handled and maintained properly.

Applications

The C1 Mini Magnetic Stirrer is suitable for a wide range of laboratory activities, including:

• Preparation and mixing of chemical solutions
• Biochemistry and general chemistry experiments
• Educational and practical laboratory demonstrations
• Sample preparation and routine quality control
• Research, development, and analytical procedures
• Mixing low-viscosity liquids and compatible laboratory solutions

Technical Specifications

• Product Name: C1 Mini Magnetic Stirrer
• Model: C1
• Stirring Type: Magnetic
• Speed Range: Approximately 300–3000 RPM
• Maximum Stirring Capacity: 3000 mL
• Motor Power: 5 W
• Power Supply: 100–240 V AC, 50/60 Hz
• Noise Level: ≤30 dB at full load
• Operating Temperature: 5–40°C
• Allowable Ambient Humidity: ≤80%
• Dimensions (L × W × H): Approximately 143 × 149 × 47.5 mm
• Net Weight: Approximately 0.28 kg
• Gross Weight: Approximately 0.35 kg

Operating Instructions and Maintenance

Place the magnetic stirrer on a flat, stable surface and connect it to a compatible power supply. Add the appropriate magnetic stir bar to the liquid, then position the vessel centrally on the stirring surface. Begin at a low speed and gradually increase it until the desired mixing action is achieved. This helps reduce the risk of losing magnetic coupling.

After use, switch off and unplug the instrument. Clean spills promptly using a suitable cleaning method, and avoid immersing the unit in liquid. Always follow the manufacturer’s instructions and laboratory safety procedures.

Ideal for Laboratories and Institutional Buyers

The C1 Mini Magnetic Stirrer combines compact dimensions, adjustable stirring speed, and practical mixing capacity in an economical laboratory instrument. It is a useful option for educational institutions, scientific laboratories, research facilities, quality control departments, and laboratory equipment distributors seeking a dependable solution for routine liquid mixing.

Choose the C1 Mini Magnetic Stirrer for convenient, space-efficient, and consistent laboratory stirring.

Frequently Asked Questions (FAQ)

1. What is the C1 Mini Magnetic Stirrer used for?

It is used for mixing liquid solutions in chemical, biochemical, educational, analytical, and research laboratories.

2. What is the maximum stirring capacity?

The stated maximum stirring capacity is up to 3000 mL (3 litres), depending on the liquid, vessel, and operating conditions.

3. What is the speed range of the C1 Mini Magnetic Stirrer?

The adjustable speed range is approximately 300–3000 RPM.

4. Does the C1 Mini Magnetic Stirrer have a heating function?

The standard C1 model described here is a magnetic stirrer without a stated heating function. Confirm the product configuration before ordering.

5. Is it suitable for educational laboratories?

Yes. Its compact design and straightforward speed control make it suitable for routine experiments and demonstrations in schools, colleges, and universities.

6. How should the instrument be maintained?

Keep it on a stable surface, clean spills promptly, unplug it after use, and follow the manufacturer’s operating and cleaning instructions.

7. What power supply does it require?

The listed power supply is 100–240 V AC at 50/60 Hz. Check the supplied adapter and product label before connecting it to a power source.
