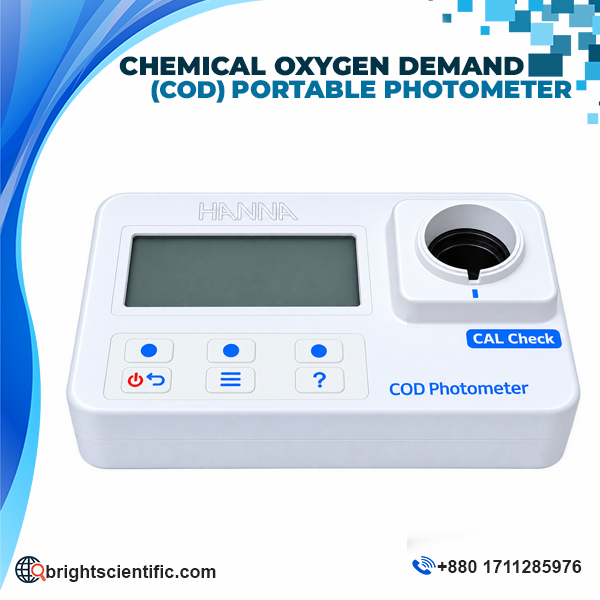

COD Meter – Hanna HI97106 Chemical Oxygen Demand (COD) Photometer

The Hanna HI97106 COD Meter is a professional Chemical Oxygen Demand (COD) Photometer designed for accurate and repeatable COD measurement in water and wastewater analysis. This portable photometer is suitable for environmental laboratories, wastewater treatment facilities, industrial laboratories, water quality testing, research institutions, and field testing applications.

The Hanna HI97106 combines a compact waterproof design with an advanced optical system to provide reliable COD measurements across multiple concentration ranges. According to Hanna Instruments, the instrument uses a Light Emitting Diode (LED) light source and a narrow-band interference filter to provide accurate and repeatable readings. The optical system is sealed against external dust, dirt, and water, making the instrument suitable for both laboratory bench measurements and field applications.

Product Specifications

• Product Name: Chemical Oxygen Demand (COD) Photometer
• Model: HI97106
• Product Type: Portable COD Photometer / COD Meter
• COD Low Range: 0 to 150 mg/L (as O₂)
• COD Low Range Resolution: 1 mg/L
• COD Low Range Accuracy: ±5 mg/L or ±4% of reading at 25°C, whichever is greater
• COD Medium Range: 0 to 1500 mg/L (as O₂)
• COD Medium Range Resolution: 1 mg/L
• COD Medium Range Accuracy: ±15 mg/L or ±4% of reading at 25°C, whichever is greater
• COD High Range: 0 to 15000 mg/L (as O₂)
• COD High Range Resolution: 1 mg/L
• COD High Range Accuracy: ±150 mg/L or ±2% of reading at 25°C, whichever is greater
• COD Ultra High Range: 0.0 to 60.0 g/L (as O₂)
• Light Source: Light Emitting Diode (LED)
• Light Detector: Silicon Photocell
• Filter Bandwidth: 8 nm
• Auto Data Logging: 200 readings
• Display: 128 × 64 Pixel LCD with backlight
• Auto Shut-Off: After 15 minutes of inactivity
• Operating Environment: 0 to 50°C, 0 to 100% RH
• Ingress Protection: IP67, floating case
• Dimensions: 142.5 × 102.5 × 50.5 mm
• Weight: 380 g with batteries
• Battery: 1.5V AA Alkaline × 3
• Battery Life: More than 10,000 measurements with backlight off
• Brand: Hanna Instruments

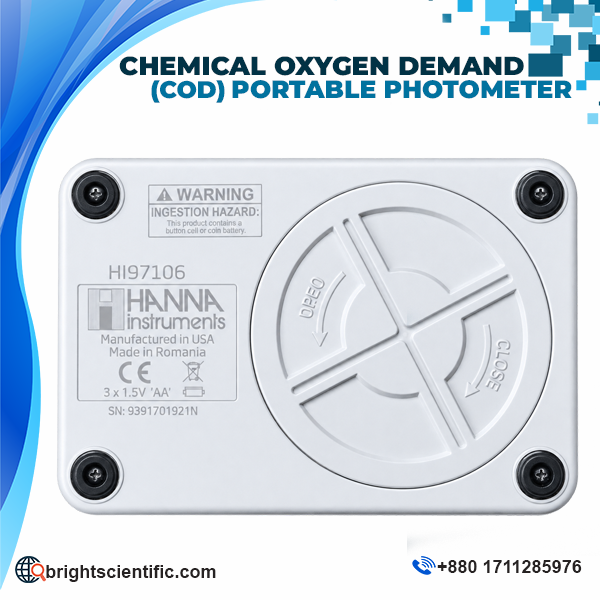

• Origin: Romania

Multiple COD Measurement Ranges

One of the important advantages of the Hanna HI97106 COD Meter is its ability to measure COD across different concentration ranges. The instrument supports Low Range, Medium Range, High Range, and Ultra High Range COD methods.

The Low Range measures from 0 to 150 mg/L, while the Medium Range covers 0 to 1500 mg/L. For samples with higher COD concentrations, the High Range extends measurement up to 15000 mg/L. The instrument also supports an Ultra High Range from 0.0 to 60.0 g/L, providing flexibility for different water and wastewater samples.

Advanced Optical System

The HI97106 features an advanced optical system based on an LED light source, silicon photocell detector, and narrow-band interference filter. Hanna states that the optical system is sealed from outside dust, dirt, and water.

The instrument also uses a positive-locking vial system, helping ensure that vials are positioned consistently in the measurement chamber. This design supports repeatable measurement conditions during routine COD testing.

CAL Check™ Validation

The Hanna HI97106 COD Photometer includes CAL Check™ functionality, which allows users to verify the performance of the instrument using certified CAL Check cuvettes.

This feature provides a convenient way to check instrument performance and helps laboratories maintain confidence in their measurement system. Hanna’s CAL Check standards are certified against NIST-traceable reference instruments.

Built-in Tutorial Mode

The HI97106 includes an integrated Tutorial Mode that provides step-by-step guidance during the measurement process. The tutorial can guide users through sample preparation, required reagents, and reagent quantities.

This makes the instrument easier to operate for routine laboratory COD analysis while helping users follow the appropriate testing procedure.

Waterproof IP67 Design

The Hanna HI97106 COD Meter (COD) Photometer features an IP67 waterproof floating case, making it suitable for demanding laboratory and field environments. Its compact dimensions of 142.5 × 102.5 × 50.5 mm and weight of approximately 380 g with batteries make it convenient for portable testing.

Data Logging and Measurement Management

The instrument provides automatic data logging for up to 200 readings, allowing users to store measurement results for later reference. It also features a backlit 128 × 64 pixel LCD, providing a clear interface for measurement and instrument settings.

The automatic shut-off function turns the instrument off after 15 minutes of inactivity, helping conserve battery power.

Applications of Hanna HI97106 COD Meter

The Hanna HI97106 Chemical Oxygen Demand (COD) Photometer is suitable for:

• Chemical Oxygen Demand (COD) Testing
• Water Quality Testing
• Wastewater Analysis
• Industrial Wastewater Testing
• Municipal Wastewater Testing
• Environmental Laboratory Analysis
• Water Treatment Applications
• Process Wastewater Monitoring
• Research Laboratory Applications
• Field Water Testing
• Environmental Monitoring
• Analytical Laboratory Testing

The instrument is particularly useful where COD concentration needs to be measured across different ranges using appropriate Hanna COD reagent methods. Hanna lists compatible COD reagent sets for low, medium, high, and ultra-high range measurements.

Key Features

• Professional Chemical Oxygen Demand (COD) Photometer
• Model HI97106
• Low, Medium, High and Ultra High COD ranges
• Measurement up to 60.0 g/L for Ultra High Range
• Advanced LED optical system
• Silicon photocell detector
• CAL Check™ performance validation
• Built-in step-by-step tutorial mode
• Automatic data logging for 200 readings
• Backlit LCD display
• IP67 waterproof floating case
• More than 10,000 measurements battery life with backlight off
• Compact and portable design
• Suitable for laboratory and field measurements

Frequently Asked Questions (FAQ)

1. What is Hanna HI97106?

Hanna HI97106 is a Chemical Oxygen Demand (COD) Photometer designed for measuring COD concentration in water and wastewater samples.

2. What is the Low Range of HI97106?

The Low Range is 0 to 150 mg/L as O₂, with a resolution of 1 mg/L.

3. What is the Medium Range?

The Medium Range is 0 to 1500 mg/L as O₂.

4. What is the High Range?

The High Range measures from 0 to 15000 mg/L as O₂.

5. Does HI97106 support Ultra High Range COD testing?

Yes. The Ultra High Range is 0.0 to 60.0 g/L as O₂.

6. Is the HI97106 waterproof?

Yes. The instrument has an IP67 waterproof, floating case.

7. How many readings can it store?

The HI97106 supports automatic data logging for up to 200 readings.

8. What is the brand and origin?

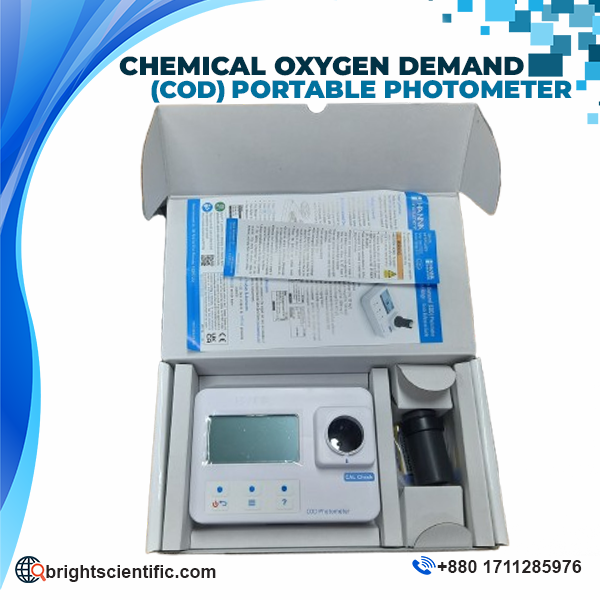

The brand is Hanna Instruments. The product box shown in the supplied image states Made in Romania.

Conclusion

The Hanna HI97106 (COD) Photometer – Chemical Oxygen Demand (COD) Photometer is a compact and professional instrument for COD analysis in water and wastewater applications. With multiple COD measurement ranges, advanced LED optics, CAL Check™ validation, automatic data logging, tutorial mode, IP67 waterproof construction, and portable design, it provides a practical solution for laboratory and field-based COD testing.
