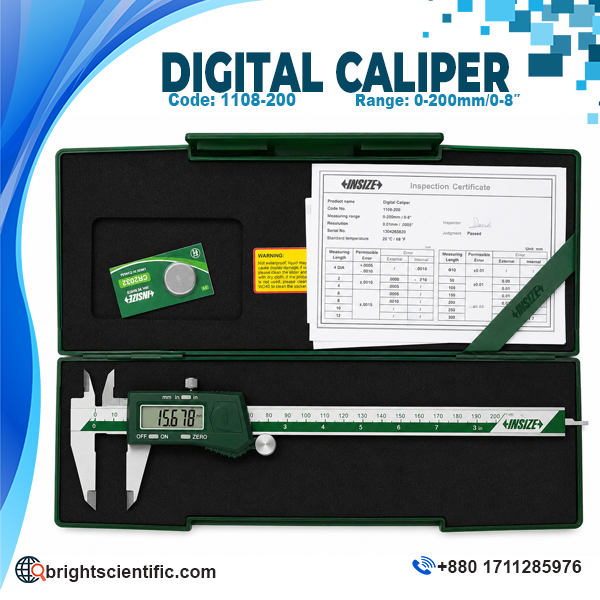

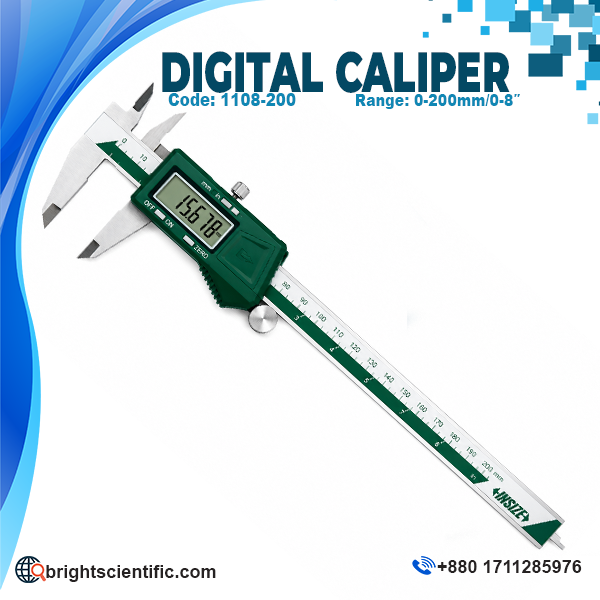

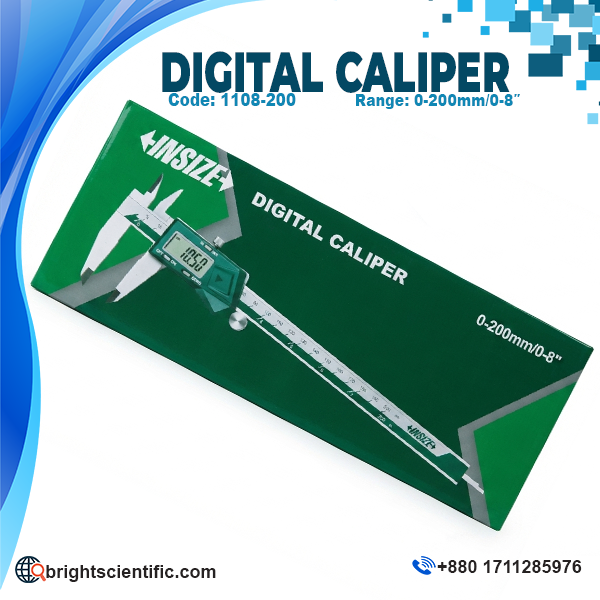

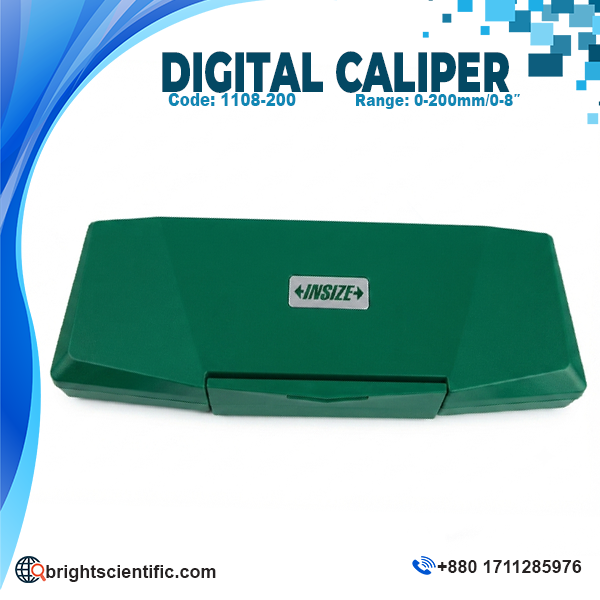

Product Description: Digital Slide Caliper 0-200mm, Insize – 1108-200

The Digital Slide Caliper 0-200mm, Insize – 1108-200 is a precision measuring instrument for accurate, reliable dimensional inspection. With a 0–200 mm / 0–8″ measuring range and ±0.03 mm accuracy, this Digital Slide Caliper 0-200mm is suitable for measuring external dimensions, internal dimensions, depth, and step measurements. It is ideal for engineering, manufacturing, workshops, laboratories, quality control, maintenance, and general dimensional inspection applications.

The Digital Slide Caliper 0-200mm features durable stainless-steel construction, making it suitable for regular professional and industrial use. Its smooth sliding mechanism allows easy movement of the digital unit and measuring jaws, while the digital display provides clear, easy-to-read measurements. The robust construction makes this Digital Slide Caliper 0-200mm a practical choice for routine precision measurement.

Versatile Measurement with Digital Slide Caliper 0-200mm

The Digital Slide Caliper 0-200mm is designed for multiple dimensional measurement applications. Its external jaws can be used to measure outside dimensions, while the internal jaws are suitable for checking inside dimensions. The depth-measuring facility allows users to measure the depth of holes, slots, and other recessed areas.

This Digital Slide Caliper 0-200mm also supports step measurement, allowing users to measure the difference between two surfaces or steps on a component. Its versatile design makes it useful for mechanical inspection, engineering work, manufacturing, fabrication, maintenance, and quality-control applications.

Measuring Range and Accuracy

The Digital Slide Caliper 0-200mm, Insize 1108-200 provides a 0–200 mm / 0–8″ measuring range, allowing users to measure a wide variety of components and manufactured parts. With a specified ±0.03 mm accuracy, this Digital Slide Caliper 0- 200 mm is suitable for reliable dimensional inspection and precision measurement tasks.

The caliper provides a 0.01 mm / 0.0005″ resolution, allowing users to obtain detailed measurement readings. The mm/inch button also provides convenient switching between metric and inch units, making the Digital Slide Caliper 0-200mm suitable for different measurement requirements.

Digital Display and Convenient Controls

The Digital Slide Caliper 0-200mm features practical controls including ON/OFF, ZERO, and mm/inch buttons. The ZERO function allows users to reset the displayed measurement and perform convenient comparative measurements.

The caliper also features automatic power-off, helping conserve battery power when the instrument is not being used. Moving the digital unit can automatically turn on the power, providing added convenience during measurement operations.

Durable Stainless-Steel Construction

The Digital Slide Caliper 0-200mm is made of stainless steel, providing a durable construction for regular professional and industrial use. Its robust body is suitable for engineering workshops, manufacturing facilities, laboratories, maintenance departments, machine shops, and quality-control environments.

Proper cleaning, handling, and storage of the Digital Slide Caliper 0-200mm can help maintain its measuring performance and extend the service life of the instrument.

Non-Waterproof Design

The Digital Slide Caliper 0-200mm – Insize 1108-200 is non-waterproof. Therefore, the instrument should be protected from water, excessive moisture, and unsuitable environmental conditions during use and storage.

To maintain the performance of the Digital Slide Caliper 0-200mm, keep the instrument clean and dry after use and store it in a suitable environment.

Battery and Data Output

The Digital Slide Caliper 0-200mm operates using a CR2032 battery, providing power for its digital measurement system. The automatic power-off function helps reduce unnecessary battery consumption.

The caliper also supports data output, which can be useful for measurement recording and compatible data-management applications.

Compact and Practical Design

The Digital Slide Caliper 0-200mm has an overall length of approximately 286 mm, providing a practical size for measuring larger components compared with a 150 mm caliper. Its design allows users to handle the instrument comfortably while performing routine dimensional checks.

The Digital Slide Caliper 0-200mm is suitable for both workshop and professional measurement applications where a larger measuring range is required.

Optional Accessories

Several optional accessories are available for compatible Insize digital calipers. These include:

• Wireless Transmitter: Code 7315-25; a receiver is required.
• Accessory Set for Digital Calipers: Code 6144, applicable to the 0–150 mm and 0–200 mm ranges.
• Depth Base Attachment: Code 6140.

These optional accessories can provide additional flexibility for specialized measurement and data-transfer requirements.

Key Specifications

• Product Name: Digital Slide Caliper 0-200mm
• Brand: Insize
• Model: 1108-200
• Product Type: Digital Slide Caliper
• Measuring Range: 0–200 mm / 0–8″
• Accuracy: ±0.03 mm
• Resolution: 0.01 mm / 0.0005″
• Construction: Stainless Steel
• Water Resistance: Non-Waterproof
• Overall Length (L): 286 mm
• Dimension (a): 24 mm
• Dimension (b): 19 mm
• Dimension (c): 16 mm
• Dimension (d): 50 mm
• Battery: CR2032
• Buttons: ON/OFF, ZERO, mm/inch
• Automatic Power Off: Yes
• Data Output: Yes
• Standard: DIN 862
• Optional Wireless Transmitter: Code 7315-25
• Optional Accessory Set: Code 6144
• Optional Depth Base Attachment: Code 6140

Key Features

• 0–200 mm Measuring Range: Suitable for measuring larger components and manufactured parts.
• ±0.03 mm Accuracy: Provides reliable measurement performance for dimensional inspection.
• 0.01 mm Resolution: Provides detailed measurement readings.
• Digital Display: Offers convenient and easy-to-read measurement values.
• Stainless Steel Construction: Durable body designed for regular professional and industrial use.
• Multiple Measurement Functions: Suitable for external, internal, depth, and step measurements.
• ON/OFF and ZERO Buttons: Provide convenient control and measurement resetting.
• mm/inch Conversion: Allows easy switching between metric and inch units.
• Automatic Power Off: Helps conserve CR2032 battery power.
• Automatic Power-On by Movement: Moving the digital unit can turn on the power.
• Data Output: Supports compatible data-output applications.
• DIN 862 Compliance: Meets the specified DIN 862 standard.
• Compact Design: Approximately 286 mm overall length for convenient handling.
• Optional Accessories: Compatible with wireless transmitter, accessory set, and depth base attachment.

Typical Applications

The Digital Slide Caliper 0-200mm, Insize – 1108-200 can be used in a wide range of professional, industrial, educational, and technical environments, including:

• Engineering workshops
• Manufacturing industries
• Mechanical inspection
• Machine shops
• Quality-control departments
• Production inspection
• Component measurement
• Laboratory applications
• Maintenance and repair
• Metalworking
• Fabrication work
• Educational and technical institutions
• Dimensional inspection
• General engineering measurement
• Industrial quality control
• Precision component inspection

Frequently Asked Questions (FAQ)

Q1: What is the Digital-Slide Caliper 0-200mm used for?

The Digital Slide Caliper 0-200mm is used for measuring external dimensions, internal dimensions, depth, and step dimensions of suitable components.

Q2: What is the measuring range of the Insize 1108-200?

The Digital Slide-Caliper 0-200mm has a measuring range of 0–200 mm / 0–8″.

Q3: What is the accuracy of the Digital-Slide Caliper 0-200mm?

The specified accuracy of the Insize 1108-200 is ±0.03 mm.

Q4: What is the resolution of the Digital-Slide Caliper 0-200mm?

The resolution is 0.01 mm / 0.0005″.

Q5: What material is the Digital Slide Caliper 0-200mm made of?

The caliper is made of stainless steel, providing a durable construction for regular professional use.

Q6: Is the Digital Slide-Caliper 0-200mm waterproof?

No. The Insize 1108-200 is not waterproof and should be protected from water and excessive moisture.

Q7: What battery does the Digital Slide Caliper 0-200mm use?

The caliper uses a CR2032 battery.

Q8: Can the caliper measure in both mm and inches?

Yes. The Digital Slide-Caliper 0-200mm has an mm/inch button for switching between metric and inch measurements.

Q9: Does the Digital Slide-Caliper 0-200mm have automatic power-off?

Yes. The caliper features automatic power-off to help conserve battery power. Moving the digital unit can also turn on the power.

Q10: Is data output available?

Yes. The Digital Slide-Caliper 0-200mm supports data output for compatible applications.

Q11: What is the model number?

The model number is Insize 1108-200.

Q12: What optional accessories are available?

Compatible optional accessories include the wireless transmitter code 7315-25, accessory set code 6144, and depth base attachment code 6140.

Where to Buy Digital Slide Caliper 0-200mm in Bangladesh

The Digital Slide-Caliper 0-200mm, Insize – 1108-200 is a practical precision measuring instrument for industries, engineering workshops, laboratories, manufacturing facilities, educational institutions, machine shops, and quality-control departments in Bangladesh.

With its 0–200 mm measuring range, ±0.03 mm accuracy, 0.01 mm resolution, stainless-steel construction, digital display, automatic power-off, and versatile measurement capabilities, the Digital Slide-Caliper 0-200mm is suitable for reliable dimensional inspection and routine professional measurement applications.

Contact

M/S Bright Scientific Co.
Phone: +880 1711285976

Conclusion

The Digital Slide-Caliper 0-200mm, Insize – 1108-200 is a durable and versatile precision measuring instrument designed for accurate dimensional inspection. With its 0–200 mm / 0–8″ measuring range, ±0.03 mm accuracy, 0.01 mm resolution, stainless-steel construction, digital display, and capability for external, internal, depth, and step measurements, this Digital Slide Caliper 0-200mm is suitable for engineering, manufacturing, workshops, laboratories, maintenance, machine shops, and quality-control applications.

The caliper also features ON/OFF, ZERO, and mm/inch buttons, automatic power-off, CR2032 battery operation, data output, and DIN 862 compliance. Optional accessories such as the 7315-25 wireless transmitter, 6144 accessory set, and 6140 depth base attachment can further expand its functionality. Overall, the Digital Slide-Caliper 0-200mm is a practical choice for professional users requiring reliable, versatile, and convenient dimensional measurement.
