TK100 Digital Moisture Meter
The TK100 Digital Moisture Meter is a portable and multifunctional moisture testing instrument designed for quick and convenient measurement of moisture content in various materials. It uses the electrical resistance method to determine moisture levels and features automatic temperature compensation for more reliable measurements.
With a clear 4-digit LCD display, backlight, dual-pin probe, zero adjustment, data hold, maximum value function, and low-battery indication, the TK100 is suitable for routine moisture inspection in laboratories, warehouses, production facilities, agricultural environments, and material-processing applications.
The compact handheld design makes the instrument convenient for both field and indoor use. Its pointed probes can be inserted into the test material to obtain a direct moisture reading.
Key Features & Benefits
- Portable digital moisture meter
- 0–80% moisture measurement range
- 0.1% resolution
- Accuracy approximately ±0.5%
- Electrical resistance measurement principle
- Automatic temperature compensation
- Clear 4-digit LCD display
- LCD backlight for convenient viewing
- Dual-pin probe design
- Zero adjustment function
- Data hold function
- Maximum value function
- Low-battery indication
- Automatic power-off function
- Compact and lightweight handheld design
- Suitable for rapid on-site moisture testing
- Powered by 4 × 1.5V AAA batteries
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | TK100 Digital Moisture Meter |
| Model | TK100 |
| Instrument Type | Digital Moisture Meter |
| Measurement Principle | Electrical Resistance Method |
| Moisture Measurement Range | 0–80% |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Temperature Compensation | Automatic |
| Display | 4-Digit LCD |
| Display Backlight | Yes |
| Probe Type | Dual Pin Probe |
| Zero Adjustment | Yes |
| Data Hold Function | Yes |
| Maximum Value Function | Yes |
| Low Battery Indication | Yes |
| Operating Temperature | 0–60°C |
| Operating Humidity | 5–90% RH |
| Power Supply | 4 × 1.5V AAA (UM-4) Batteries |
| Automatic Power Off | Approximately 5 minutes |
| Dimensions | Approx. 460 × 75 × 35 mm |
| Weight | Approx. 203 g without batteries |
Applications of TK100 Moisture Meter
1. Grain and Agricultural Material Testing
The TK100 can be used for moisture checking in various grain and agricultural materials. Moisture measurement can help users monitor material conditions during storage, handling, and processing.
2. Wood and Wood Fiber Testing
The meter is suitable for checking moisture in wood, wood fiber, wood dust, and similar materials. It can be useful in woodworking, timber handling, furniture production, and related applications.
3. Hay, Straw and Bran
The instrument can also be used for moisture testing of hay, straw, bran, and other fiber-based materials, depending on the calibration and specific TK100 variant.
4. Raw Material Inspection
The TK100 can be used for quick moisture inspection of selected chemical raw materials, plastic granules, soap powder, and other materials supported by the instrument’s calibration.
5. Laboratory and Industrial Applications
Its portable design makes it useful for routine material inspection in laboratories, warehouses, manufacturing facilities, agricultural operations, and quality-control environments.
Measurement Principle
The TK100 determines moisture content using an electrical resistance measurement principle. When the probes are inserted into a material, the instrument detects its electrical characteristics and converts the measurement into a moisture percentage displayed on the LCD.
The instrument also incorporates automatic temperature compensation, helping compensate for temperature-related effects during measurement.
Easy Operation
The TK100 Digital Moisture Meter is designed for straightforward operation. After switching on the instrument, the user can perform the required zero adjustment and then insert the two pin probes into the material being tested.
The moisture value is displayed directly on the LCD. The HOLD function can be used to retain a reading, while the maximum-value function can help monitor the highest measured value during testing.
The backlit display improves visibility, while the automatic power-off function helps conserve battery power when the meter is not being used.

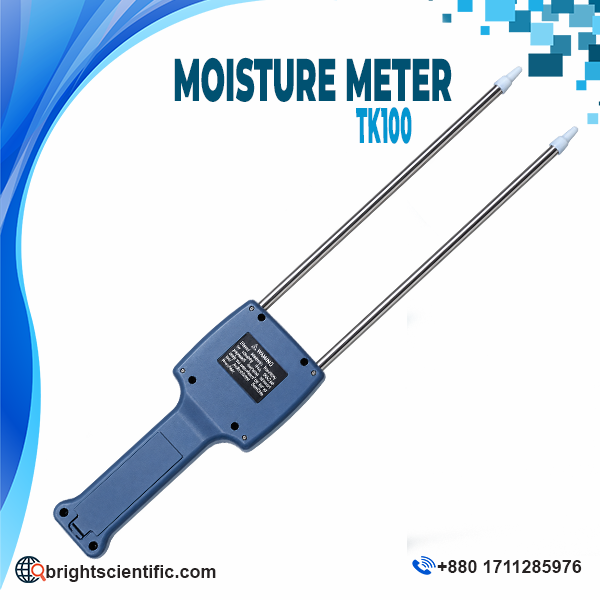

Portable Design
The handheld construction of the TK100 makes it convenient to carry between different testing locations. Its pin-type probe allows direct contact with the test material, making it suitable for quick measurements without requiring a separate laboratory setup.
Important Product Note
The TK100 designation is used for several moisture-meter variants, and supported materials/calibration modes can differ between manufacturers and versions. Therefore, the exact material modes should be confirmed against the specific instrument supplied.
Also, although some online listings describe TK100 as a soil moisture meter, the standard multifunctional TK100 specification is generally intended for material moisture measurement rather than dedicated soil analysis. A dedicated soil moisture meter should be used when soil-specific measurement is required.
Suitable For
- Grain moisture testing
- Agricultural material testing
- Wood moisture testing
- Wood fiber testing
- Hay and straw testing
- Bran testing
- Bamboo or wood dust testing
- Plastic granule inspection
- Selected chemical raw materials
- Material quality control
- Warehouse inspection
- Manufacturing facilities
- Laboratory testing
- Field moisture measurement
Frequently Asked Questions (FAQ)
1. What is the TK100 Moisture Meter used for?
The TK100 is a digital instrument used to measure moisture content in various materials such as grains, wood, fibers, hay, straw, bran, and other supported materials.
2. What is the moisture measurement range?
The measurement range is 0–80%, with a resolution of 0.1%.
3. What measurement principle does the TK100 use?
The instrument uses the electrical resistance method for moisture measurement.
4. Does the TK100 have temperature compensation?
Yes. The standard TK100 specification includes automatic temperature compensation.
5. Does the TK100 have a backlit display?
Yes. It features a 4-digit LCD with backlight for convenient reading.
6. What type of battery does the TK100 require?
The meter is powered by 4 × 1.5V AAA (UM-4) batteries.
7. Does the TK100 automatically turn off?
Yes. The automatic power-off function activates after approximately 5 minutes of inactivity.
8. Can the TK100 be used for soil moisture measurement?
Some listings market TK100 variants for soil, but the standard material-testing TK100 should not automatically be considered a dedicated soil moisture meter. The specific model’s manual and calibration should be checked before using it for soil.
9. Is the TK100 suitable for wood moisture measurement?
Yes. Wood and wood-fiber materials are among the commonly supported applications of the TK100.
10. Is the TK100 suitable for field use?
Yes. Its portable handheld design and direct pin-probe measurement make it convenient for field and on-site moisture testing.
