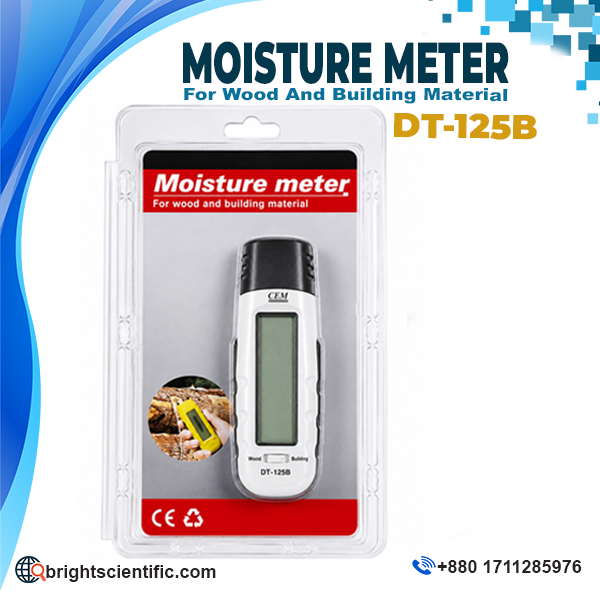

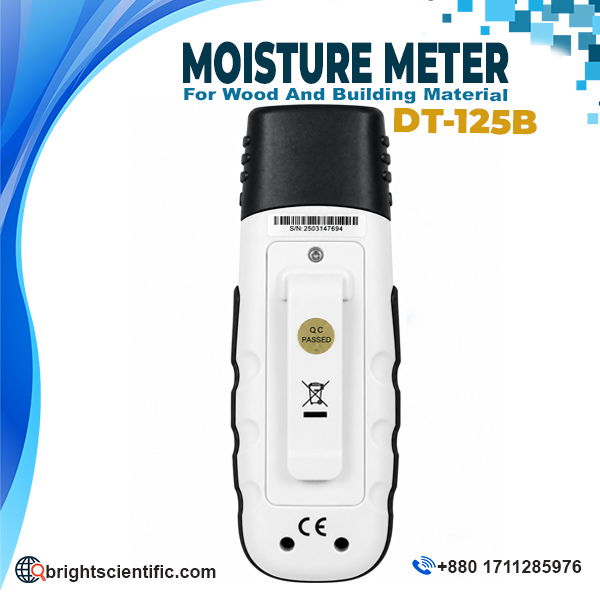

Product Description: CEM DT-125B Moisture Meter

The CEM DT-125B Moisture Meter is a compact and practical digital moisture measuring instrument designed to measure moisture levels in sawn timber, cardboard, paper, plaster, concrete, mortar, and other supported construction materials. It uses an electrical resistance measuring principle to provide quick and convenient moisture measurements for routine inspection and material testing.

The DT-125B Moisture Meter features integrated and replaceable electrodes with an electrode length of 8 mm, allowing direct measurement through the built-in pins. It provides a wood moisture measuring range of 6–44% and a material measuring range of 0.2–2.0%. The wood measurement accuracy is specified as ±1%.

The instrument also supports temperature measurement from 0–60°C, while its operating ambient temperature range is 0–40°C with ambient moisture conditions of 0–85% RH. The DT-125B has a large LCD display for convenient reading and includes functions such as calibration and battery checking.

With dimensions of 140 × 48 × 33 mm and a lightweight body weighing only 93 g, the CEM DT-125B is easy to carry and suitable for both field and routine inspection applications. It operates using 3 × CR2032 replaceable batteries and is supplied with a battery and clamshell packaging.

Key Specifications

• Product Name: CEM DT-125B Moisture Meter
• Brand: CEM
• Model: DT-125B
• Measuring Principle: Electrical Resistance
• Electrode Length: 8 mm
• Electrodes: Integrated, Replaceable
• Measuring Range – Wood: 6–44%
• Measuring Range – Material: 0.2–2.0%
• Display Accuracy – Wood: ±1%
• Display Accuracy – Material: ±0.05% (specified for DT-127)
• Battery: 3 × CR2032, Replaceable
• Temperature Measuring: 0–60°C
• Ambient Temperature: 0–40°C
• Ambient Moisture: 0–85% RH
• Dimensions (H × W × D): 140 × 48 × 33 mm
• Weight: 93 g
• Accessories: Battery, Clamshell
• Origin: China

Key Features

• Electrical Resistance Technology: Uses electrical resistance for convenient moisture measurement.
• Wide Wood Measuring Range: Measures wood moisture from 6–44%.
• Construction Material Measurement: Measures supported materials within a range of 0.2–2.0%.
• Integrated Replaceable Electrodes: Features built-in 8 mm replaceable electrodes.
• Large LCD Display: Provides clear and convenient readings.
• Temperature Measurement: Supports temperature measurement from 0–60°C.
• Calibration & Battery Check: Includes calibration and battery checking functionality.
• Compact Design: Measures only 140 × 48 × 33 mm.
• Lightweight Construction: Weighing approximately 93 g, it is convenient for portable use.
• Replaceable Battery: Operates with 3 × CR2032 batteries.
• Multiple Material Applications: Suitable for timber, cardboard, paper, plaster, concrete, and mortar.

Typical Applications

The CEM DT-125B Moisture Meter is suitable for a variety of moisture inspection and material testing applications, including:

• Wood and timber moisture measurement
• Sawn timber inspection
• Cardboard moisture testing
• Paper moisture inspection
• Plaster moisture measurement
• Concrete moisture inspection
• Mortar moisture testing
• Construction material inspection
• Building and renovation work
• Material quality assessment
• Technical and field inspection
• Laboratory and industrial applications

Frequently Asked Questions (FAQ)

Q1: What is the CEM DT-125B Moisture Meter used for?
The CEM DT-125B is used to measure moisture levels in sawn timber, cardboard, paper, plaster, concrete, mortar, and supported construction materials.

Q2: What measuring principle does the DT-125B use?
It uses an electrical resistance measuring principle.

Q3: What is the wood measuring range?
The wood moisture measuring range is 6–44%.

Q4: What is the material measuring range?
The specified material measuring range is 0.2–2.0%.

Q5: What type of electrodes does the DT-125B have?
It has integrated, replaceable electrodes with an electrode length of 8 mm.

Q6: Can the DT-125B measure temperature?
Yes. Its specified temperature measuring range is 0–60°C.

Q7: What batteries are required?
The DT-125B uses 3 × CR2032 replaceable batteries.

Q8: What are the dimensions of the DT-125B?
Its dimensions are 140 × 48 × 33 mm (H × W × D).

Q9: How much does the DT-125B weigh?
The meter weighs approximately 93 g.

Q10: What accessories are included?
The standard accessories listed by CEM are a battery and clamshell.

Where to Buy CEM DT-125B Moisture Meter

The CEM DT-125B Moisture Meter is suitable for laboratories, construction professionals, woodworking applications, technical inspection, educational institutions, and industrial users requiring convenient moisture measurement.

For product availability, pricing, and supply in Bangladesh, customers can contact M/S Bright Scientific Co.

Contact

M/S Bright Scientific Co.
Phone: +880 1711285976

In conclusion, the CEM DT-125B Moisture Meter is a compact and lightweight instrument designed for practical moisture measurement in wood and construction materials. With its electrical resistance measuring principle, integrated replaceable electrodes, 6–44% wood measuring range, 0.2–2.0% material range, 0–60°C temperature measurement, large LCD display, and portable 93 g design, it is a practical solution for routine moisture inspection and material testing.
