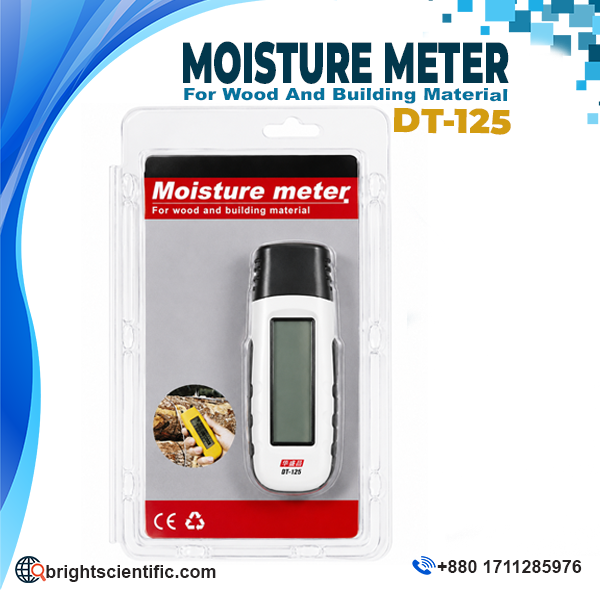

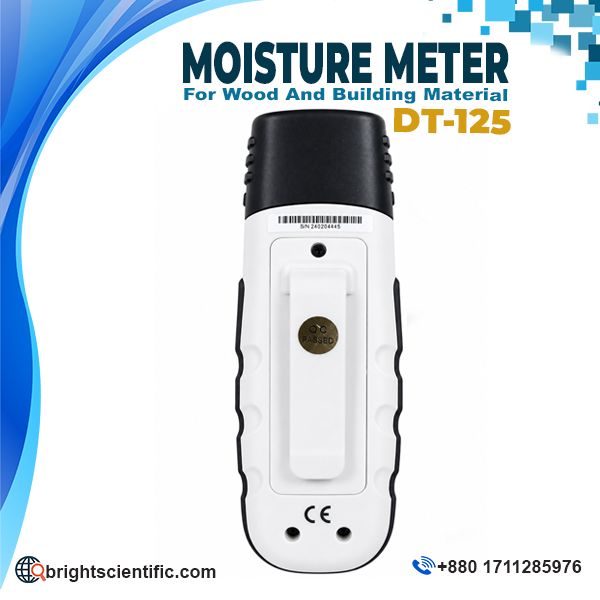

Product Description: CEM DT-125 Moisture Meter

The CEM DT-125 Moisture Meter is a compact and practical digital measuring instrument designed to measure moisture content in wood and construction materials, as well as cardboard and paper. It uses an electrical resistance measuring principle to provide quick and convenient moisture measurements for materials such as sawn timber, plaster, concrete, and mortar.

The DT-125 Moisture Meter features integrated replaceable electrodes and an easy-to-read display for convenient measurement. Its compact impact-proof plastic housing makes it suitable for routine inspection and measurement applications. The instrument also includes useful functions such as Auto Power On, Auto Power Off, Battery Check, and calibration/battery check functionality.

With a wood measuring range of 6–44% and a construction material measuring range of 0.2–2.0%, the CEM DT-125 is suitable for checking moisture levels in various materials. Its compact dimensions of 130 × 47 × 25 mm and approximate weight of 100 g make it convenient to carry and operate.

Key Specifications

• Product Name: CEM DT-125 Moisture Meter
• Brand: CEM
• Model: DT-125
• Measuring Principle: Electrical Resistance
• Measuring Materials: Wood, Construction Materials, Cardboard & Paper
• Wood Measuring Range: 6–44%
• Construction Material Range: 0.2–2.0%
• Wood Accuracy: ±1%
• Material Accuracy: ±0.05%
• Electrode Length: 8 mm
• Electrodes: Integrated, Replaceable
• Display: Digital Display
• Auto Power OFF: After approximately 15 minutes
• Battery: 3 × CR 2032, Replaceable
• Housing Material: Impact-Proof Plastic Housing
• Ambient Temperature: 0–40°C
• Ambient Relative Humidity: 0–85% RH
• Dimensions: 130 × 47 × 25 mm
• Weight: Approximately 100 g
• Warranty: 1 Year
• Origin: China

Key Features

• Accurate Moisture Measurement: Designed to measure moisture content in wood and construction materials.
• Wide Measuring Range: Measures wood moisture from 6–44% and construction material moisture from 0.2–2.0%.
• Electrical Resistance Principle: Uses electrical resistance technology for material moisture measurement.
• Replaceable Electrodes: Features integrated electrodes that can be replaced when required.
• Auto Power On: Convenient automatic power-on functionality for quick operation.
• Auto Power Off: Automatically switches off after approximately 15 minutes to help conserve battery power.
• Battery Check Function: Allows users to check the battery condition.
• Compact Design: Measuring only 130 × 47 × 25 mm, making it easy to carry and handle.
• Impact-Proof Housing: Durable plastic housing designed for routine measuring applications.
• Multiple Material Applications: Suitable for wood, cardboard, paper, plaster, concrete, mortar, and other supported construction materials.
• Portable Operation: Lightweight design with an approximate weight of 100 g.
• Complete Accessories: Supplied with battery, test certificate, and instruction manual.

Typical Applications

The CEM DT-125 Moisture Meter can be used for moisture inspection and measurement in various professional applications, including:

• Measuring moisture in sawn timber
• Wood moisture inspection
• Checking moisture in cardboard and paper
• Construction material moisture measurement
• Plaster moisture checking
• Concrete moisture inspection
• Mortar moisture measurement
• Building and construction inspection
• Material quality assessment
• Laboratory and technical applications

The product documentation specifically states that the instrument is designed to measure moisture in sawn timber, cardboard, paper, plaster, concrete, and mortar.

Frequently Asked Questions (FAQ)

Q1: What is the CEM DT-125 Moisture Meter used for?
The CEM DT-125 Moisture Meter is used to measure moisture content in wood, construction materials, cardboard, and paper.

Q2: What is the measuring principle of the DT-125?
The CEM DT-125 uses an electrical resistance measuring principle.

Q3: What is the measuring range for wood?
The wood measuring range is 6–44%.

Q4: What is the measuring range for construction materials?
The measuring range for the specified construction materials is 0.2–2.0%.

Q5: What materials can be tested with this moisture meter?
It is designed for measuring moisture in wood, construction materials, cardboard, and paper. The documentation also mentions applications with plaster, concrete, and mortar.

Q6: Does the DT-125 have an Auto Power Off function?
Yes. The instrument automatically switches off after approximately 15 minutes.

Q7: What type of battery does the CEM DT-125 use?
It operates using 3 × CR 2032 replaceable batteries.

Q8: What are the dimensions of the DT-125?
The instrument dimensions are 130 × 47 × 25 mm, with an approximate weight of 100 g.

Q9: What accessories are included with the DT-125?
The supplied accessories include a battery, test certificate, and instruction manual.

Q10: What is the warranty period?
The product documentation specifies a 1-year warranty.

Where to Buy CEM DT-125 Moisture Meter

The CEM DT-125 Moisture Meter is available from M/S Bright Scientific Co., a supplier of laboratory equipment, scientific instruments, and testing equipment in Bangladesh.

Bright Scientific Co. supplies scientific and laboratory products for laboratories, educational institutions, research facilities, industries, and professional users across Bangladesh.

Contact

M/S Bright Scientific Co.
Phone: +880 1711285976

In conclusion, the CEM DT-125 Moisture Meter is a compact and versatile moisture measuring instrument designed for wood, construction materials, cardboard, and paper. With its electrical resistance measuring principle, integrated replaceable electrodes, digital display, automatic power-off function, compact design, and multiple material applications, it is a practical choice for routine moisture inspection and measurement requirements.
