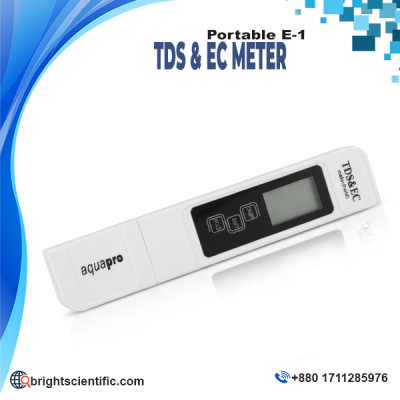

Product Description: Digital TDS EC Temp Meter

The Digital TDS EC Temp Meter is a practical 3-in-1 water quality testing instrument designed to measure Total Dissolved Solids (TDS), Electrical Conductivity (EC), and temperature. It is suitable for checking filtered water quality, monitoring the performance of water filtration systems, and evaluating dissolved mineral content in water.

This TDS & EC Meter features a compact digital design with an easy-to-read display, Hold Function, Auto-off Function, and built-in digital thermometer. Its Automatic Temperature Compensation (ATC) helps provide convenient temperature-adjusted readings within the specified measurement range.

The meter is factory calibrated using a 342 ppm NaCl solution and can be recalibrated when required using a mini-screwdriver. It is supplied with a carrying case featuring a belt clip, making it convenient for laboratory, water treatment, household, and field testing applications.

Key Specifications

• Product Name: Digital TDS EC Temp Meter
• Type: 3-in-1 Digital TDS, EC & Temperature Meter
• TDS Range: 0–9990 ppm (mg/L)
• Temperature Range: 0–80°C
• TDS Resolution: 1 ppm from 0–999 ppm; 10 ppm from 1000–9990 ppm
• Temperature Resolution: 0.1°C
• Accuracy: ±2%
• EC-to-TDS Conversion Factor: NaCl, average 0.5
• ATC Range: 1–50°C
• Power Source: 2 × 1.5V button cell batteries
• Battery Type: LR44 or equivalent
• Battery Life: Approximately 1000 hours of usage
• Dimensions: 15.5 × 3.1 × 2.3 cm
• Weight with Case: 76.5 g
• Weight without Case: 56.7 g
• Calibration: Factory calibrated with 342 ppm NaCl solution
• Country of Origin: China
• Supplier: M/S Bright Scientific Co.

Key Features

• 3-in-1 Measurement: Measures TDS, EC, and water temperature in one compact device.
• Wide TDS Range: Measures TDS from 0 to 9990 ppm (mg/L).
• Built-in Thermometer: Provides digital temperature measurement with 0.1°C resolution.
• Automatic Temperature Compensation: ATC supports temperature-adjusted readings within the specified range.
• Hold Function: Allows users to hold the displayed measurement for convenient reading.
• Auto-off Function: Automatically switches off after approximately 10 minutes to help conserve battery power.
• Factory Calibrated: Calibrated with a 342 ppm NaCl solution before use.
• Recalibration Option: Can be recalibrated using a mini-screwdriver when required.
• Compact Design: Lightweight construction makes the meter convenient for routine testing and field use.
• Carrying Case: Includes a protective carrying case with a belt clip for easy transportation.

Typical Applications

The Digital TDS EC Temp Meter can be used for a variety of water quality testing and monitoring applications, including:

• Checking filtered and purified water
• Monitoring water filter performance
• Measuring Total Dissolved Solids in water
• Checking Electrical Conductivity
• Measuring water temperature
• Water treatment and filtration applications
• Laboratory water quality testing
• Household water checks
• Aquaculture and general water monitoring
• Field water quality assessment
• Educational and research applications

Frequently Asked Questions (FAQ)

Q1: What does a TDS meter measure?
A TDS meter measures the approximate amount of dissolved solids in water and displays the result in ppm or mg/L.

Q2: What parameters does this meter measure?
The device is designed to measure TDS, EC, and temperature, making it a convenient 3-in-1 water testing instrument.

Q3: What is the TDS measurement range?
The TDS range is 0–9990 ppm (mg/L).

Q4: Does this meter measure temperature?
Yes. It includes a built-in digital thermometer with a temperature resolution of 0.1°C.

Q5: What is the purpose of ATC?
Automatic Temperature Compensation helps compensate for temperature effects on measurements within the specified ATC range of 1–50°C.

Q6: Can the meter be recalibrated?
Yes. The meter can be recalibrated using a mini screwdriver when required.

Q7: Does it have an Auto-off function?
Yes. The meter automatically switches off after approximately 10 minutes of inactivity.

Q8: What batteries does it use?
It uses two 1.5V button cell batteries, such as LR44 or an equivalent type.

Q9: Where can this TDS EC Meter be used?
It is suitable for laboratories, water filtration applications, household water checks, educational institutions, research environments, and field testing.

Q10: What is the origin of this TDS EC Temp Meter?
The Country of Origin is China.

Where to Buy Digital TDS EC Temp Meter

The Digital TDS EC Temp Meter is available from M/S Bright Scientific Co., a supplier of laboratory equipment, scientific instruments, medical products, and water quality testing equipment in Bangladesh.

It is suitable for laboratories, educational institutions, research facilities, water treatment applications, pharmaceutical and industrial environments, and general water quality testing requirements.

Contact

M/S Bright Scientific Co.
Phone: +880 1711285976
Country of Origin: China

The Digital TDS EC Temp Meter offers a convenient solution for measuring TDS, EC, and temperature in a compact and portable design. Its wide measurement range, ATC, Hold Function, Auto-off Function, and carrying case make it suitable for routine water quality testing and monitoring.
